YT-D

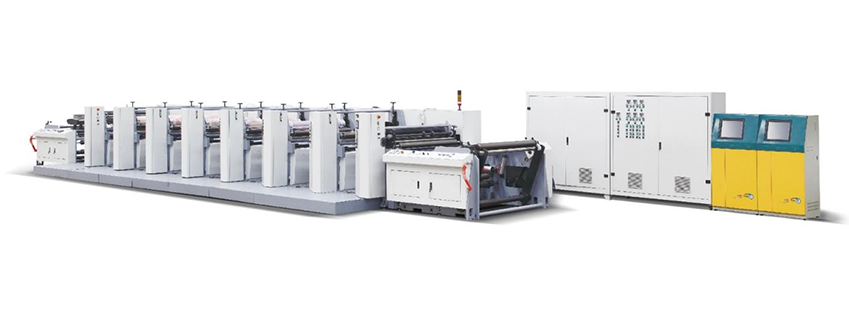

Unit-Type Flexo Printing Machine

Machine Description Product Videos Machine Highlights Technical Parameters

Machine Description

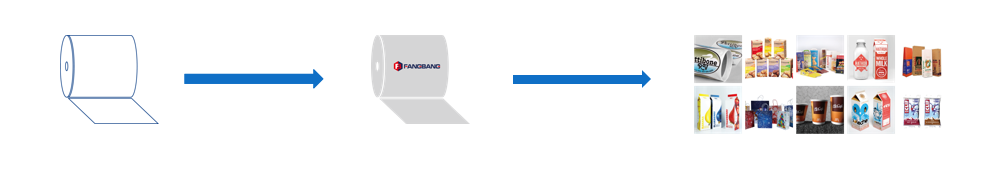

This machine is a printing machine which adopts flexible photosensitive resin plates,rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printing.lt is controlled centrally by PLC system and generally consists of unwinding section,tension control section, infeed traction section, printing section,drying section, outfeed traction section, rewinding section and control section.This machine is an ideal machine for printing paper cup, carton, paper bag and so on.

Product Videos

YT-41000C

YT-51300C

YT-61300C

YT 61500D

Machine Highlights

1.Anilox roller inking structure effectively guarantees printing quality.

2.The machine has strong adaptability.since it can achieve satisfactory printing effect on various materials, from kraft paper to corrugated board.

3.The combination of printing units is flexible, because users can increase ordecrease printing unit number according to different requirements.

4.Low-cost printing plate and Low-loss printing process can effectively reduce printing costwhich is 30-50% lower than gravure printing.

Technical Parameters

TECHNICAL DATA	YT-1000C/D	YT-1300C/D	YT-1500C/D
Paper Thickness	40~220 or 220~380g/㎡	40~220 or 220~380g/㎡	40~220or 220~380g/㎡
Max. Material Roll Width	1020mm	1320mm	1520mm1500mm
Max. Printing Width	1000mm	1285~1200mm(380~1500mm)	1500mm
Printing Repeat Length	285~1200mm(380~1500mm)	285~1200mm(380~1500mm)	380~1500mm
Max.Unwinding Diameter	Ф1500mm	Ф1500mm	Ф1500mm
Max. Rewinding Diameter	Ф1500mm	Ф1500mm	Ф1500mm
Gearing Specification	1/8 CP	1/8 CP	1/8 CP
Registration Accuracy	±0.12mm	±0.12mm	±0.12mm
Max. Printing Speed	150m/min	150m/min	150m/min
Guiding Roller Diameter	Ф100mm	Ф100mm	Ф100mm
Main Motor Power	11kw	11kw	11kw
Drying Mode	Warm Drying and l.R. Drying
