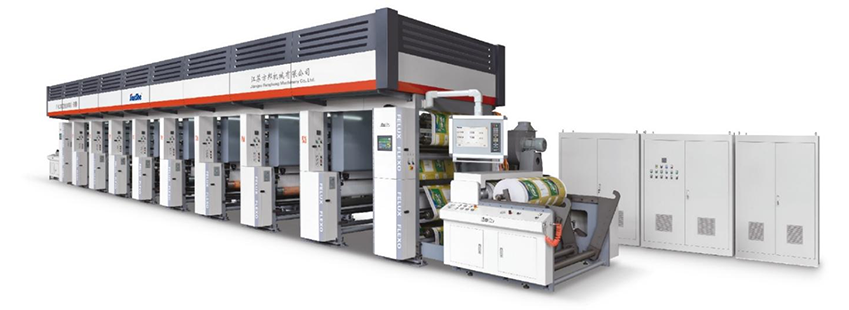

YT-E High-Speed Unit-Type Flexo Printing Machine

Machine Description

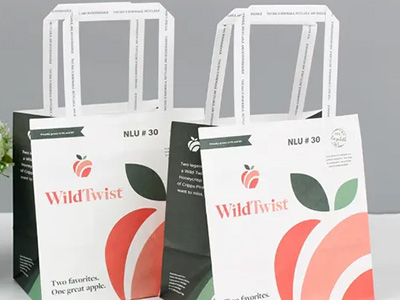

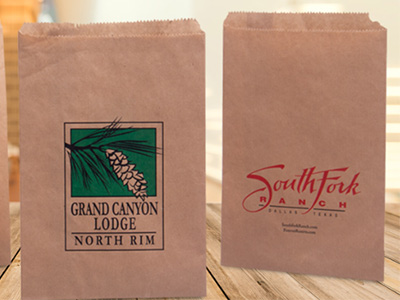

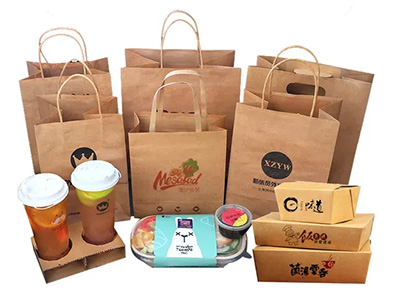

This machine is a printing machine which adopts flexible photosensitive resin plates,rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printing.lt is controlled centrally by PLC system and generally consists of unwinding section,tension control section, infeed traction section, printing section,drying section, outfeed traction section, rewinding section and control section.This machine is an ideal machine for printing paper cup, carton, paper bag and so on.



Technical Parameters
TECHNICAL DATA YT-1000E YT-1300E YT-1500E
Paper Thickness 40~320g/㎡ 40~320g/㎡ 40~320g/㎡
Max. Material Roll Width 1050mm 1350mm 1550mm
Max. Printing Width 1000mm 1300mm 1500mm
Printing Repeat Length 381~1500mm 381~1500mm 381~1500mm
Max. Unwinding Diameter Ф1500mm Ф1500mm Ф1500mm
Max.Rewinding Diameter Ф1500mm Ф1500mm Ф1500mm
Gearing Specification 1/8 CP 1/8 CP 1/8 CP
Registration Accuracy ±0.1mm ±0.1mm ±0.1mm
Max.Speed 300m/min 300m/min 300m/min
Guiding Roller Diameter Ф120mm Ф120mm Ф120mm
Drying Mode Warm Drying and l.R. Drying
