YT-CB

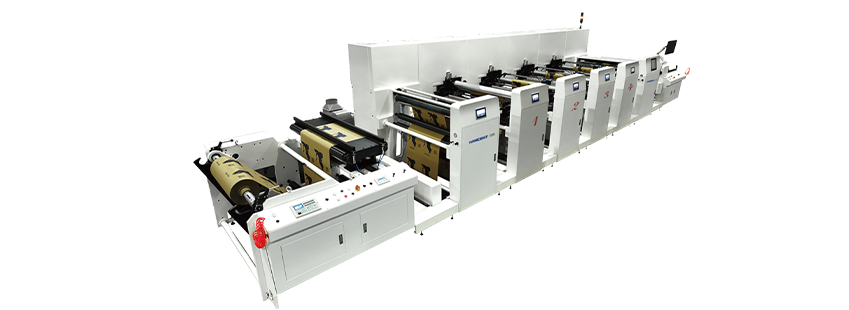

Dual-Servo High-speed Flexo Printing Machine

Machine Description

This machine is a printing machine which adopts flexible photosensitive resin plates, rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printing. lt is controlled centrally by PLC system and generally consists of unwinding section,tension control section, infeed traction section.printing section, drying section, outfeed traction section, rewinding section and control section. This machine is an ideal machine for printing paper cup, carton, paper bag and so on.、

Technical Parameters
TECHNICAL DATA YT-1000CB YT-1300CB YT-1500CB
Paper Thickness 60~280g/㎡ 60~280g/㎡ 60~280g/㎡
Max.Material Roll Width 1020mm 1320mm 1520mm
Max. Printing Width 1000mm 1300mm 1500mm
Printing Repeat Length 350-1200mm 350-1200mm 350-1200mm
Max.Unwinding Diameter Ф1500mm Ф1500mm Ф1500mm
Max.Rewinding Diameter Ф1500mm Ф1500mm Ф1500mm
Material Core Diameter Ф76mm(3”) Ф76mm(3”) Ф76mm(3”)
Registration Accuracy ±0.1mm ±0.1mm ±0.1mm
Max. speed 220m/min 220m/min 220m/min
Guiding Roller Diameter Ф120mm Ф120mm Ф120mm
Drying Mode Warm Drying and l.R. Drying
