YT-BE/BC

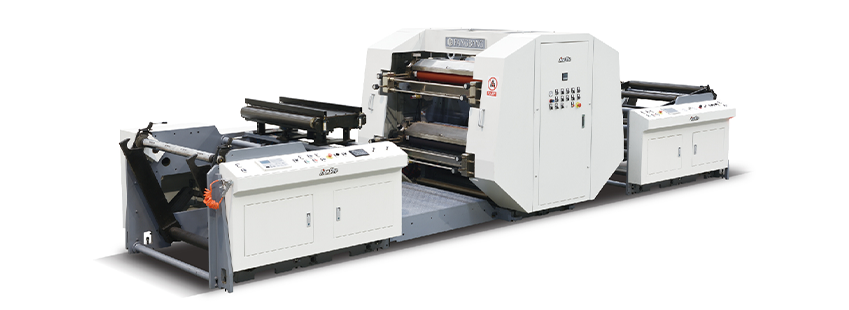

High-Speed Stack Flexo Printing Machine

Name: High-Speed Stack Flexo Printing Machine
Brand: Fangbang
SKU: 00011
Rating: 4.1 (56 reviews)

DownLoad

Machine Description Machine Highlights Technical Parameters

Machine Description

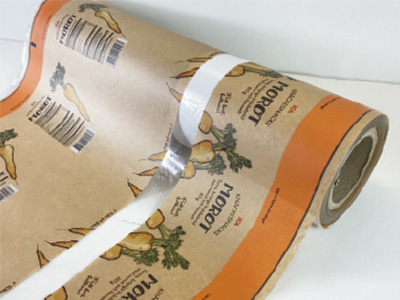

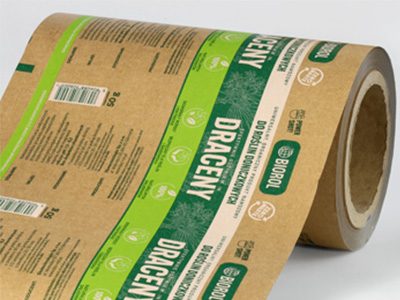

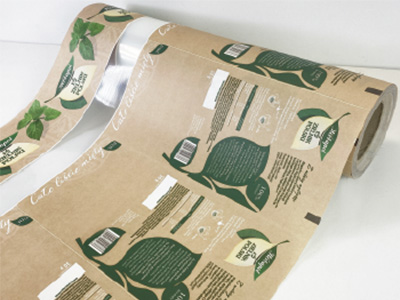

This machine is a traditional stack-type printing machine that adopts flexible photosensitive plates as the base material, anilox rollers for transferring ink, and liquid ink for printing. Thanks to the traditional machine structure, this machine is suitable for printing on packaging materials such as polyethylene, cellophane, and roll paper etc. It is an ideal printing equipment for producing food packaging, supermarket handbags, vest bags, and clothes bags, etc.

Machine Highlights

1. The whole machine is controlled by PLC, ensuring stable production perfomance

2. The lifting up and down of printing cylinder is controlled pneumatically; printing inkwill be stirred by motor when the printing cylinder lifts up.

3. Adopts reliable drying system coordinated with high-speed rotation, which willautomatically break circuit when the machine stops.

4. High-precision planetary gear ensuring 360" continuous longitudinal colorregistration, coordinated with motor-driven jogging device, makes printing effectmore exquisite.

5. Equipped with ceramic anilox roller with chambered doctor metal blade (or metalanilox roller with chambered doctor plastic blade), as well as ink pump circulation.

Technical Parameters

TECHNICAL DATA	YT-800BE	YT-1000BE	YT-1300BE	YT-1500BE
Max. Material Roll Width	800mm	1000mm	1300mm	1500mm
Max. Printing Width	760mm	960mm	1260mm	1460mm
Max. UnvRewinding Diameter	Ф1500mm	Ф1500mm	中1500mm	中1500mm
Printing Repeat Length	200~900mm	200~900mm	200~900mm	200~900mm
Registration Accuracy	±0.2mm	±0.2mm	±0.2mm	±0.2mm
Max. Printing Speed	100m/min	100m/min	100m/min	100m/min
Drying Mode	Warm Drying
