ZD-QFJ18N

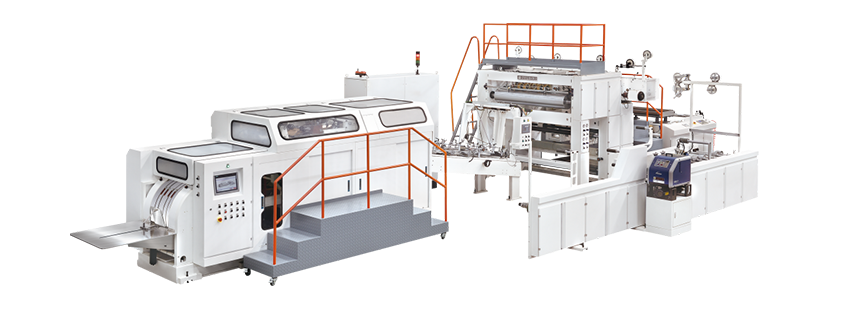

Fully Automatic Roll-fed Square Bottom Paper Bag Machine

Machine Description Machine Highlights Technical Parameters

Machine Description

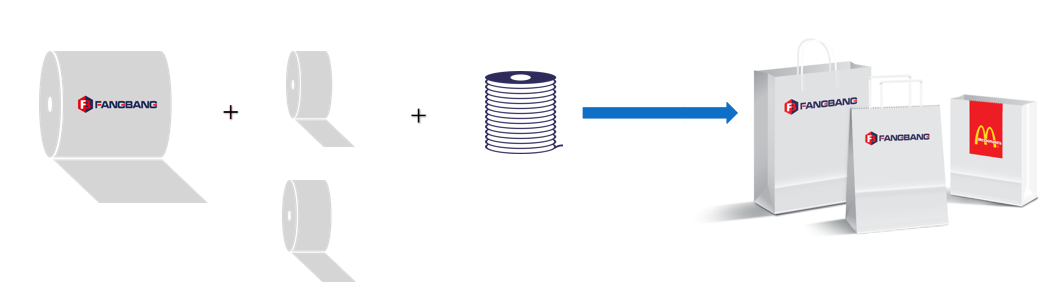

This machine is designed to manufacture square bottom paper bags with handles from paper roll, and it is an ideal equipment for producing mid-size and big-size paper bags fast., By implementing steps including paper feeding, tube forming, tube cutting and bottom forming inline, this machine can effectively save labor costs.

Machine Highlights

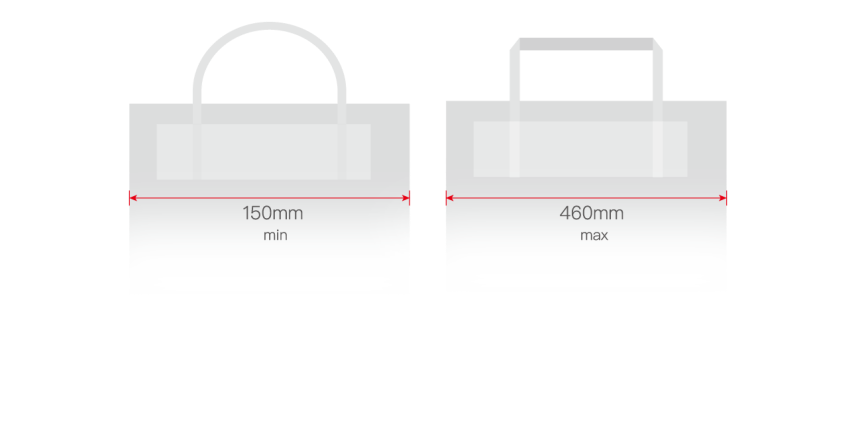

The range of paper bag front width for this model: 150-460mm.

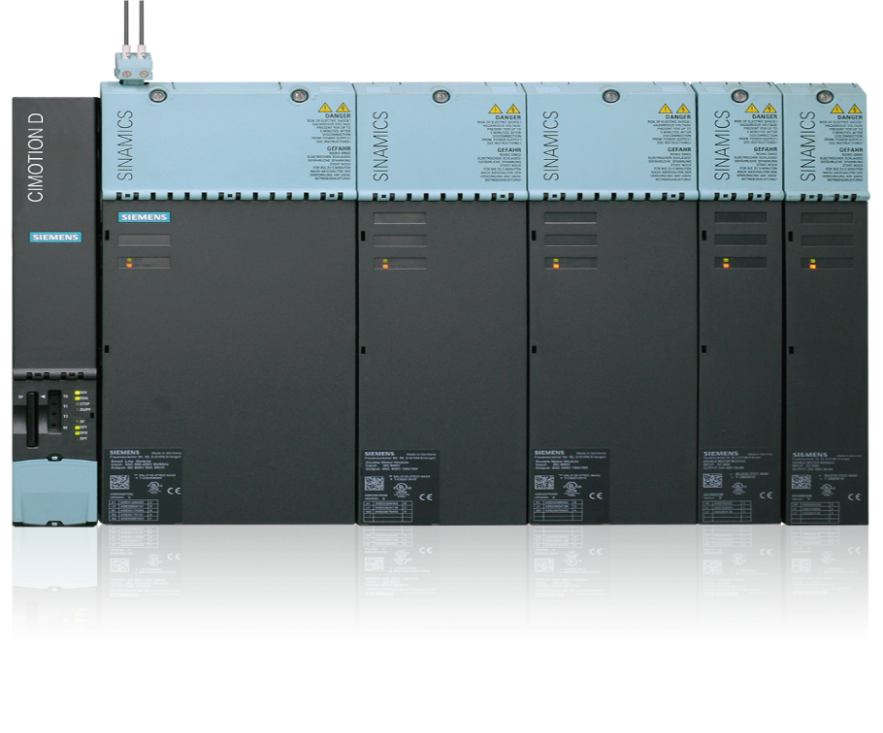

This model adopts full servo motor adjustment for size adjustment, which can shorten the product size adjustment time by 80%.

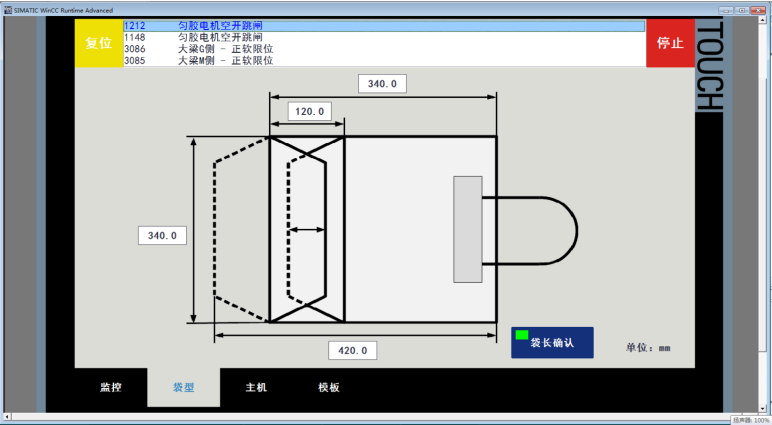

SIEMENS PLC system ensures that the adjustment of cutting length can be implemented directly on touch screen,meanwhile brings efficient and stable production.

Technical Parameters

TECHNICAL DATA	ZD-QFJ18N
Paper Roll Width	550~1390mm(490~1390mm)
Max.Paper Roll Diameter	Ф1500mm
Material Core Diameter	Ф76mm(3”)
Paper Thickness	80~150g/㎡
Bag Body Width	180~460mm(150mm~460mm)
Paper Tube Length	300~530mm(280~570mm)
Bag Bottom Size	80~220mm
Handle Rope Height	110mm~115mm
Handle Rope Diameter	Ф4~6mm
Handle Patch Length	152.4mm
Handle Patch Width	45~50mm
Paper Patch Roll Diameter	Ф1200mm
Paper Patch Roll Width	90~100mm
Paper Patch Thickness	100~180g/㎡
Max. Speed	150bags/min(180bags/min)
Total Power	46kw
Total Weight	Approx.21000kg
Overall Dimension	L14500xW6000xH3400mm
