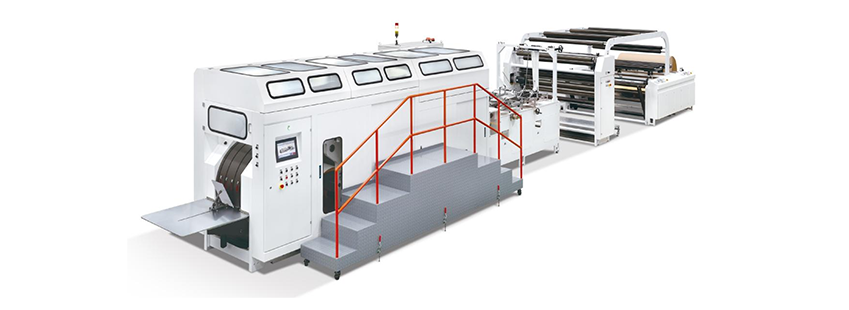

This machine takes rolled paper as raw material and finishes single or double layers of square-bottom paper bags without handles at one time, which is the ideal equipment for producing medium, large, and super-large square-bottom paper bags.
| TECHNICAL DATA | ZD-FJ22+D |
| Paper Roll Width | 770~1700mm |
| Max. Paper Roll Diameter | Ф1200mm |
| Material Core Diameter | Ф76mm (3”) |
| Paper Thickness | 70~125g/㎡ |
| Tube Length | 600~1180mm |
| Bag Body Width | 220-540mm |
| Bag Bottom Size | 150~350mm |
| Max. Speed | 150bags/min |
| Total Power | 25.5kw |
| Total Weight | Approx.15000kg |
| Dimension(L*V*H mm) | L16000xW3500xH2300mm |
