ZD-QFF14

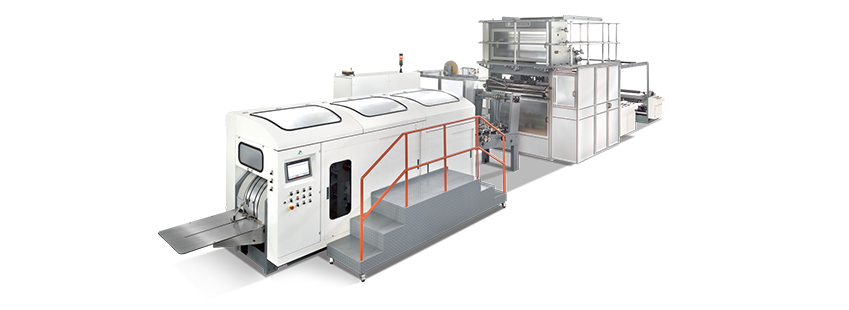

Dual-Layer Automatic Paper Bag Machine with Handle

Machine Description

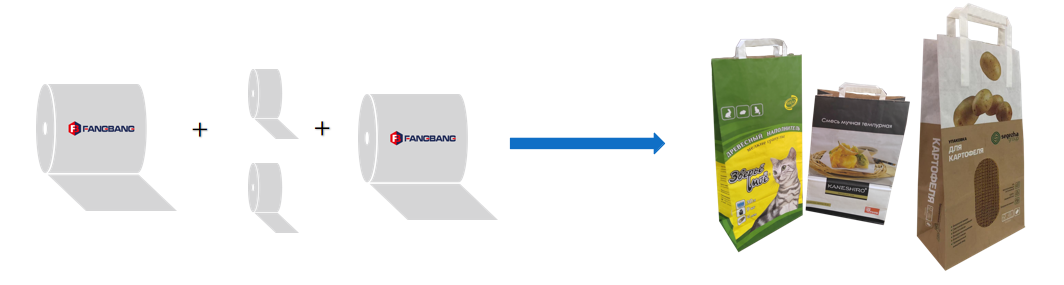

This machine is different from the traditional flat rope square bottom paper bag machine, which is ideal for making high-end square bottom paper bags with flat rope handles. This machine is made by a special and unique mechanism to make rope, glued on a layer of paper or between two layers of paper, thus forming a special flat rope square bottom paper bag machine. By completing the steps of handle making, handle gluing, paper brief forming, paper brief cutting and bag bottom forming on one machine, the machinechang truly realizes fully automatic production and can effectively save labor costs.

Machine Highlights

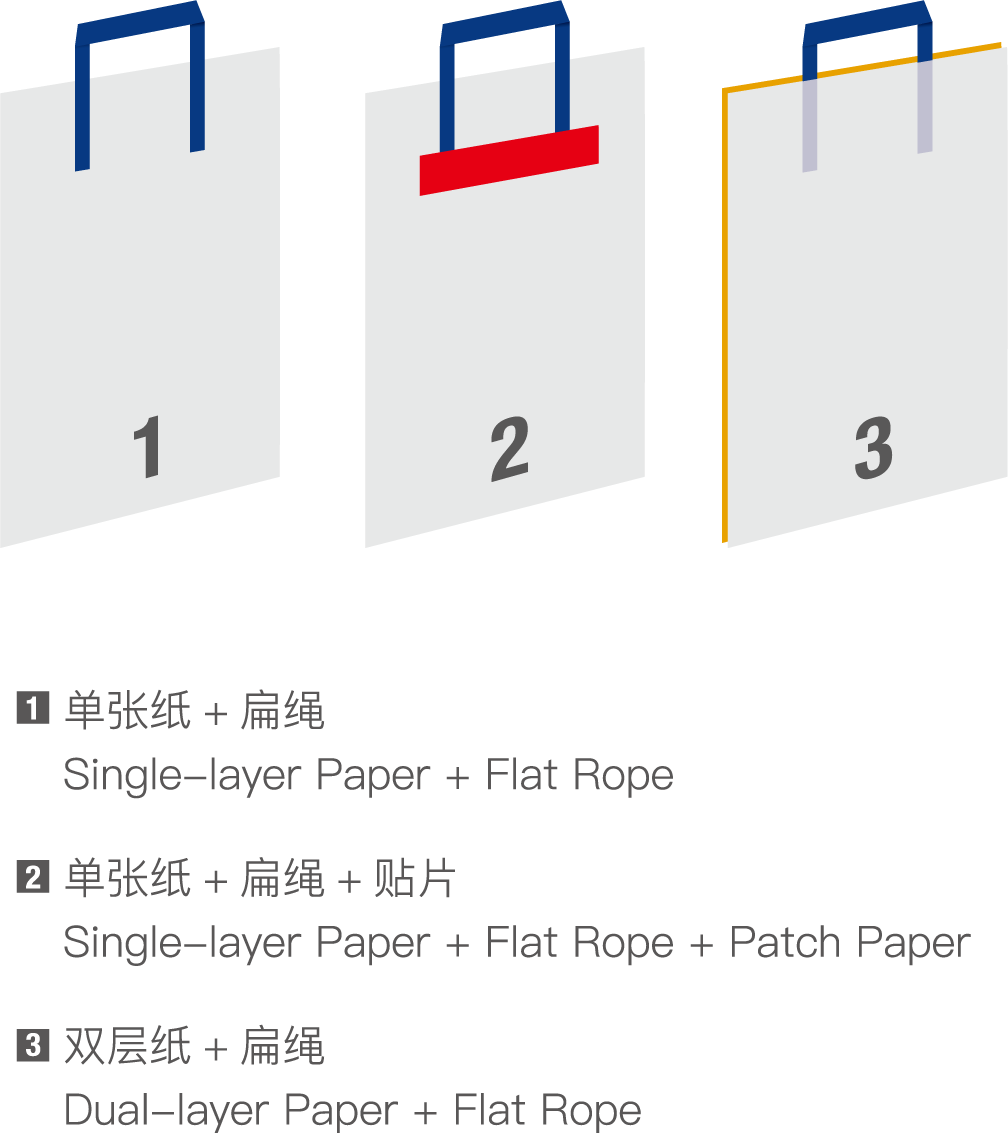

The special mechanical and electrical design can produce many kinds of flat rope paper bags in one machine, which can allow customers to switch freely between cost saving, mainstream market demand and increasing the load capacity of paper bags.



Technical Parameters
Paper Roll Width 630~1150mm(590~1150mm)
Max.Paper Roll Diameter Ф1200mm
Material Core Diameter Ф76mm(3”)
Paper Thickness 70~125g/㎡
Bag Body Width 220-360mm(200~360mm)
Paper Tube Length 350~600mm(350~650mm)
Bag Bottom Size 80-200mm
Handle Center Distance 330mm≤a≤560mm
Flat Handle Rope Height 80mm
Flat Handle Rope Width 18mm
Paper Rope Roll Width 80-85mm
Paper Rope Roll Diameter 中1000mm
Paper Rope Thickness 80~100g/㎡
Handle Patch Length 180mm
Handle Patch Width 70mm
Paper Patch Roll Diameter Ф1000mm
Paper Patch Roll Width 180mm
Paper Patch Thickness 80~100g/㎡
Max. Speed 140bags/min
Total Power 56kw
Total Weight Approx. 22000kg
Overall Dimension L15000xW5500xH3600mm
